D Series

E-Kabin D Series floor-standing panels are designed to be used in industrial applications. They are suitable for indoor applications and have modular structure, which enables expansion by combining side by side. Depending on selection of the door they can have IP55 or IP41 protection class. Doors and covers are made of epoxy polyester powder paint on pre-galvanized sheet and its inner parts are made of pre-galvanized steel sheet. Their simple design provides functionality and economic solutions for various installations.

ust-uste-monte-edilebilir-baza

Stackable plinth

Thanks to its modular plinth structure, plints can be mounted on top of each other to increase the enclosure height.

moduler-yapi

Modular Design - side-by-side expandability

Thanks to its modular structure, it is possible to assemble and expand it side by side for multiple combinations.

• Front and rear door possibility

• Changeable door opening direction

• Corner module application

Havalandırma modülü aksesuarı

Ventilation module accessory

Ventilation module option for high-capacity natural ventilation

Poliüretan conta

Polyurethane sealing gasket

Foam-in place gasket applied to the door does not lose its elasticity in time and provides protection against dust and water.

Robust framework

Its strong framework structure allows doors and covers to be fixed after electro-assembly.

havalandirma-yarikli-kapilar

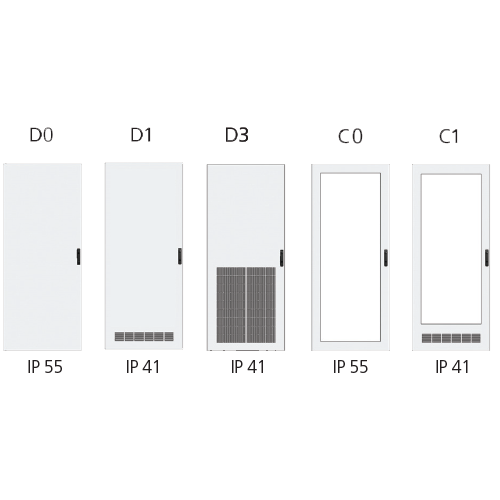

Doors with ventilation louvres

Doors with ventilation louvres that can be used in various applications can be selected as standard.

Wide range of Door Type Options

• Plain

• Tempered Glass (4 mm)
•  Ventilated

İşlevsel boy montaj plakası

Functional full height mounting plate

Full height mounting plate and accessories, which canbe selected in different thicknesses depending on theneed, provides convenience in both expanded enclosureapplications and heavy device mounting.

dort-noktadan-kilitleme

Reliable locking system

Locking system enables the door to be fixed to the framework at four different points.

Type of Mounting:

Floor-Standing

Modularity:

Modular

Application:

 Indoor, dry environment

Protection Class:

IP41, IP55

Framework:

Not Painted, 2 mm Pre-Galvanized steel sheet

Paint:

 Epoxy - polyester powder paint

Colour:

Standard RAL 7035 (Grey Colour)

Environmental Class:

According to EN 60721 - 3 - 3 IE32

Standards:

IEC 61439-1, IEC 62208, IEC 60529, IEC 62262

Modül Seti - ED MS-1
Modül Seti - ED MS-2
Modül Seti - ED MS-1Modül Seti - ED MS-2

Module Set - ED MS

It includes horizontal rails, top cover and plinth set to form the framework.
Material  :  Pre-Galvanized steel sheet
Surface        :  Painted, RAL 7035 (Grey Colour)
                       Ral 9005 (Black)(Plinth)

Content    :
4 pieces of Horizontal rails (in width)

                    4 pieces of Horizontal rails (in depth)
                    1 piece of Top cover

                    1 piece of Top cover connection pack

                    1 piece of Plinth set

                    1 piece of Plinth fittings pack

                    1 set of Corner fittings kit
                    (8 pieces of Corner connection
plates and fasteners)


Applicable Series:

ED
Module set

Enclosure Rated Width

Enclosure Rated Depth

Order Codes

400

400

500
600
700
800

ED MS 0404 (55,41)

ED MS 0405 (55,41)
ED MS 0406 (55,41)
ED MS 0407 (55,41)
ED MS 0408 (55,41)

500

400

500
600
700
800

ED MS 0504 (55,41)

ED MS 0505 (55,41)
ED MS 0506 (55,41)
ED MS 0507 (55,41)
ED MS 0508 (55,41)

600

400

500
600
700
800

ED MS 0604 (55,41)

ED MS 0605 (55,41)
ED MS 0606 (55,41)
ED MS 0607 (55,41)
ED MS 0608 (55,41)

700

400

500
600
700
800

ED MS 0704 (55,41)

ED MS 0705 (55,41)
ED MS 0706 (55,41)
ED MS 0707 (55,41)
ED MS 0708 (55,41)

800

400

500
600
700
800

ED MS 0804 (55,41)

ED MS 0805 (55,41)
ED MS 0806 (55,41)
ED MS 0807 (55,41)
ED MS 0808 (55,41)

Module set for enclosures with overlapping door

Enclosure Rated Width

Enclosure Rated Depth

Order Codes

1000

400

500
600
700
800

ED MS 5504 (55,41)

ED MS 5505 (55,41)
ED MS 5506 (55,41)
ED MS 5507 (55,41)
ED MS 5508 (55,41)

1200

400

500
600
700
800

ED MS 6604 (55,41)

ED MS 6605 (55,41)
ED MS 6606 (55,41)
ED MS 6607 (55,41)
ED MS 6608 (55,41)

Note: Supply contents include bottom plate when IP 55 protection class is selected and last two digits of the order code is “55”. Example: ED MS 0506 55 (For Bottom Plate combinations please check page 182)

Supply contents do not include bottom plate when IP 41 protection class is selected. Example:ED MS 0506 41
Dikey Profil Seti - ED DP-1
Dikey Profil Seti - ED DP-2
Dikey Profil Seti - ED DP-1Dikey Profil Seti - ED DP-2

Uprights Set - ED DP

It is used vertically to form the enclosure framework.
Material  : Galvanized steel sheet
Surface        :  Galvanized, Not Painted
Content    : 4 pieces of Uprights


Applicable Series:

ED
Uprights set

Enclosure Rated Height

Order Code

1800

ED DP 18

2000

ED DP 20

2200

ED DP 22

Dikey Orta Profili - ED DO-1
Dikey Orta Profili - ED DO-2
Dikey Orta Profili - ED DO-1Dikey Orta Profili - ED DO-2

Intermediary Upright Rail - ED DO

ES DO is designed to be installed between fixed panels at rear side of eclosures with overlapping door.
Material  : Galvanized steel sheet
Surface        :  Galvanized, Not Painted
Content    : 1 piece of Vertical intermediary rail
                   1 piece of Fittings set


Applicable Series:

ED
Intermediary upright rail

Enclosure Rated Height

Order Code

1800

ED DO 18

2000

ED DO 20

2200

ED DO 22

Ön Kapı - ED OK-1
Ön Kapı - ED OK-2
Ön Kapı - ED OK-1Ön Kapı - ED OK-2

Front Door - ED OK

Material  : Galvanized steel sheet
Surface        :  Ral 7035 (Gri renk)
Content    : 1 piece of Front door
                   1 piece of Lock
                   1 piece of Fittings set


Applicable Series:

ED
Front door

Enclosure Rated Height

Panel Rated Width or Depth

Order Codes

1800

400

500
600
700
800
500+500
600+600

ED OK 1804 D0
ED OK 1805 D0
ED OK 1806 D0
ED OK 1807 D0
ED OK 1808 D0
ED OK 1855 D0
ED OK 1866 D0

2000

400

500
600
700
800
500+500
600+600

ED OK 2004 D0

ED OK 2005 D0
ED OK 2006 D0
ED OK 2007 D0
ED OK 2008 D0
ED OK 2055 D0
ED OK 2066 D0

2200

400

500
600
700
800
500+500
600+600

ED OK 2204 D0

ED OK 2205 D0
ED OK 2206 D0
ED OK 2207 D0
ED OK 2208 D0
ED OK 2255 D0
ED OK 2266 D0

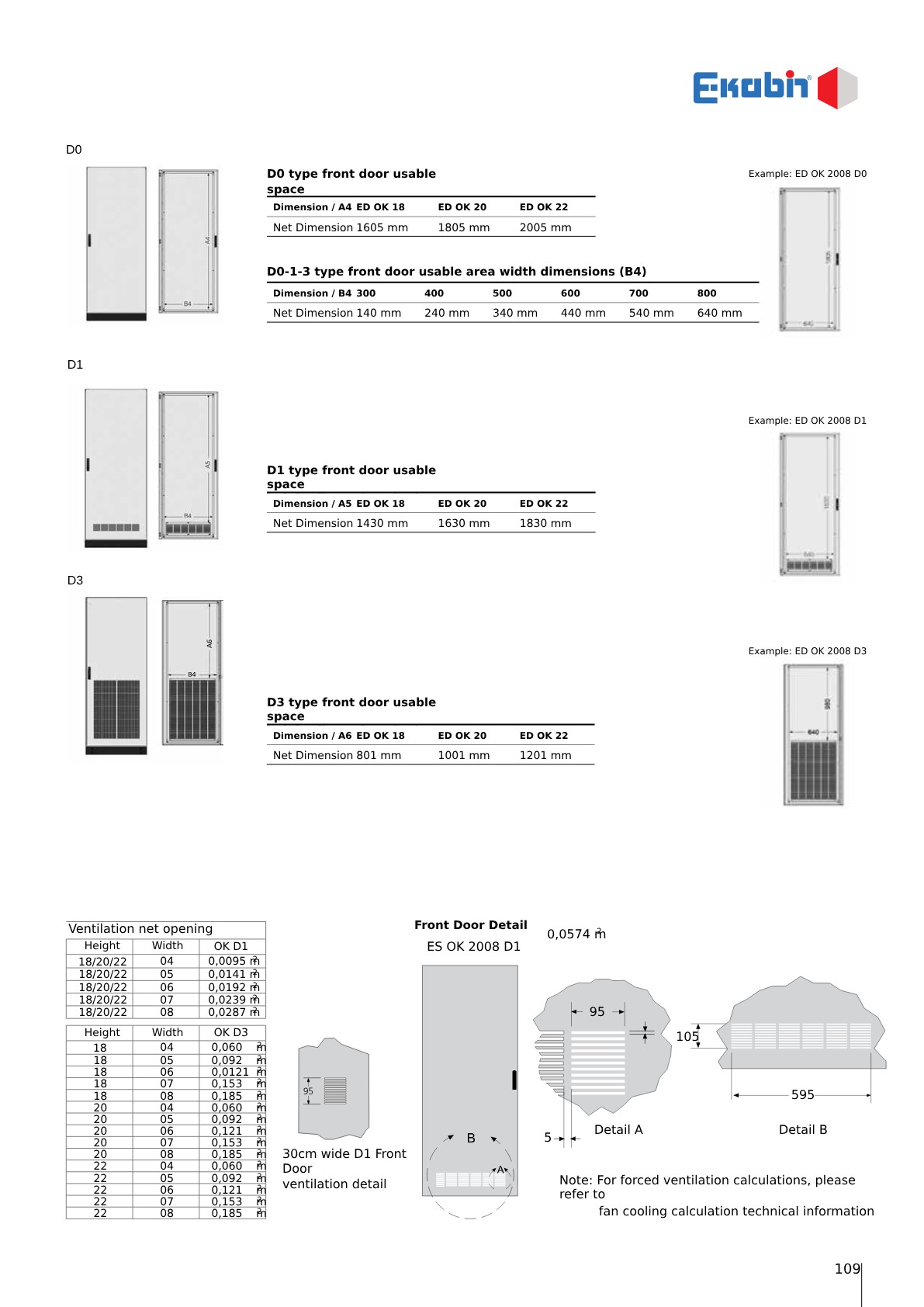

Note: Given codes are for D0 door types. If D1, D3, C0 or C1 type door is prefered last two digits of the code must be changed accordingly.

For C0-C1 type of doors, temperred glass is used.
null
MA Mounting rails suitable for inner side of doors

Front Door Width

Length L

Code

50 cm

34,5 cm

EG MA 0350

60 cm

44,5 cm

EG MA 0450

70 cm

54,5 cm

EG MA 0550

80 cm

64,5 cm

EG MA 0650

Sabit Kapak - EG SK-1
Sabit Kapak - EG SK-2
Sabit Kapak - EG SK-1Sabit Kapak - EG SK-2

Fixed Panel - EG SK

It is used to close the rear and/or sides of enclosures. The design of the rear and side fixed panels are the same.
Material  : Galvanized steel sheet
Surface        : Painted, RAL 7035 (Grey Colour)
Content    : 1 piece of Fixed panel
                   1 piece of Fittings set


Applicable Series:

ESED
Fixed panel

Enclosure Rated Height

Enclosure Nominal Width or Depth

Order Code

1800

400

500
600
700
800

EG SK 1804

EG SK 1805
EG SK 1806
EG SK 1807
EG SK 1808

2000

400

500
600
700
800

EG SK 2004

EG SK 2005
EG SK 2006
EG SK 2007
EG SK 2008

2200

400

500
600
700
800

EG SK 2204

EG SK 2205
EG SK 2206
EG SK 2207
EG SK 2208

Boy Montaj Plakaları - EG MK-1
Boy Montaj Plakaları - EG MK-2
Boy Montaj Plakaları - EG MK-1Boy Montaj Plakaları - EG MK-2

Full Height Mounting Plate - EG MK

It is designed for general usage.
Material  : Galvanized steel sheet
Content    :  1 piece of Full height mounting plate
                   2 pieces of Depth rails
                   1 piece of Fittings set


Applicable Series:

ELESEDXSHS
Full height mounting plate

Enclosure Rated Height

Enclosure Rated Width

Enclosure Rated Depth

Steel Sheet Thickness

HH

WW

DD

TXX

12*

04

04

T15

14*

05

05

T20

16*

06

06

T30

18

07

07

20

08

08

22

10

12

* Only T20 type is available in these dimensions (HH=12,14,16).
Mounting plate information

TXX

Steel Sheet Thickness

Maximum Carriage Capacity

Surface Protection

T15

1,5 mm

300 kg

Without Folio

T20

2 mm

600 kg

With Folio

T30

3 mm

600 kg

Without Folio

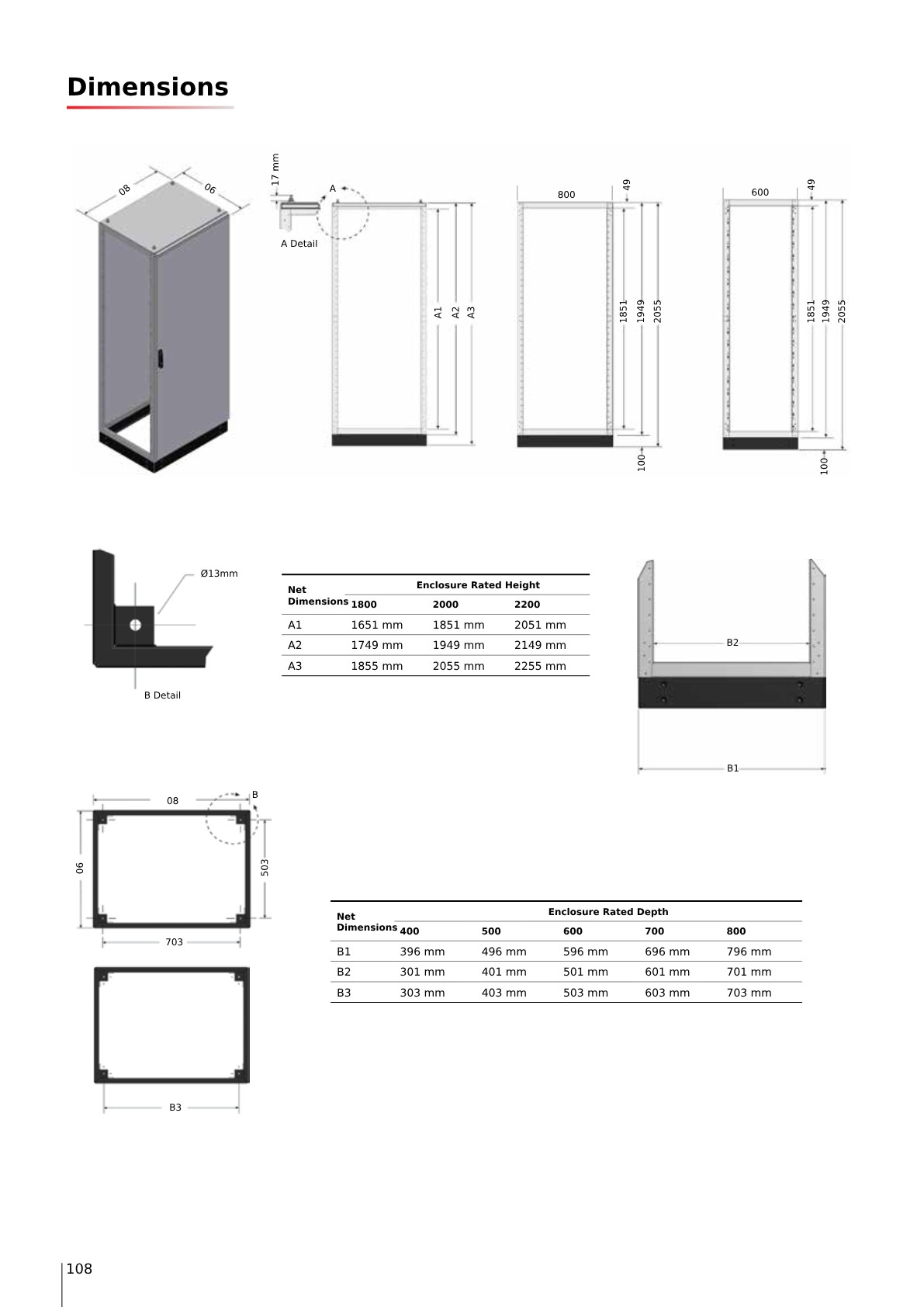

d-serisi-standart-olculerd-serisi-standart-olculer
