KD Series - Data Center Rack Cabinets

KabinPLUS KD 19” Data Center Rack cabinets are designed on a strong lattice structure that provides maximum cabling flexibility and high energy efficiency.

General Technicial SpecificationsDimensionsCatalog CertificatesOther Documents

Configuration Flexibility

• Wide range of choices in dimensions and configurations

• Assembled delivery of selected configuration

• Designed to be used as a single unit or bayed in a row

• Wide range of interior mounting, cabling and airflow

management accessories are available.

Robust Framework

Rigid framework made of steel with 1500 kg static and dynamic loading capacity -dynamic loading with heavy duty castor sets

Hıgh Corrison Resistance

All parts made of pre-galvanised sheet steel or have protective

coating. In addition electrostatic powder painted for superior

corrosion protection.

Standart Colors

RAL 9003 White

RAL 9005 Black

Please contact for other

alternatives

Grounding

All doors, covers and internal parts are

grounded with the body. The door

grounding conductor is in a socket

structure. The grounding terminal

positioned on the frame is designed as a

connection point to the common

grounding network.

Cabinet Baying Kit

• Baying brackets made of 3 mm steel

• 4 pieces of baying brackets per upright pair

• It is not necessary to remove the doors during the

cabinet baying.

• Baying brackets placed below the door plane - invisible

when door closed

• The baying kit does not interfere with installation

space in the cabinet interior.

• Cabinets can be bayed with or without side

panel fitted on.

True Dimensions

• Doors are excluded in frame depth dimension.

• Access to adjacent raised floor tiles directly in front or

behind the cabinet is not blocked.

Levelling Feets

• Levelling feet allows adjustment on uneven floors

• Full metal design; no plastic part

• Loading capacity 1500 kg / 4 feets

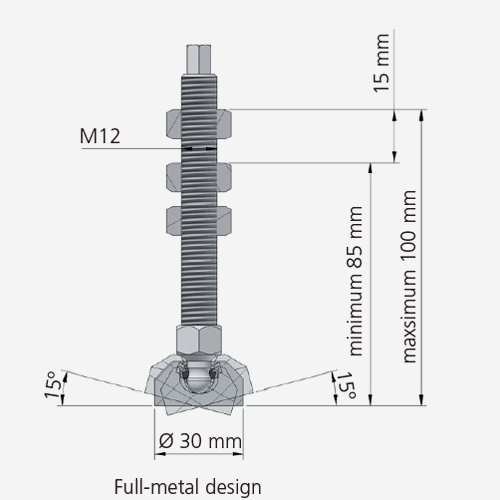

• Adjusting range between 85 mm and 100 mm and

+/- 15 degree

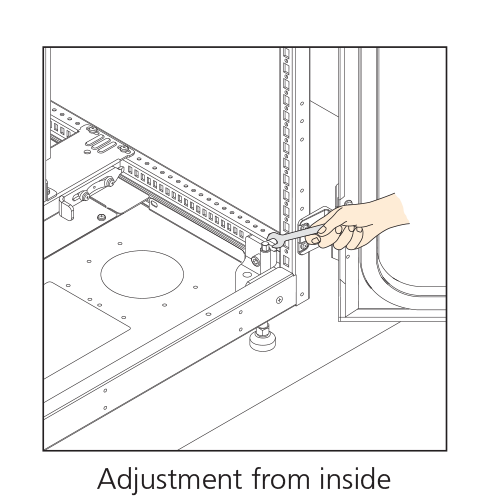

• Possibility of adjustment from inside the cabinet

when external access to the feets is blocked by

airflow management accessories

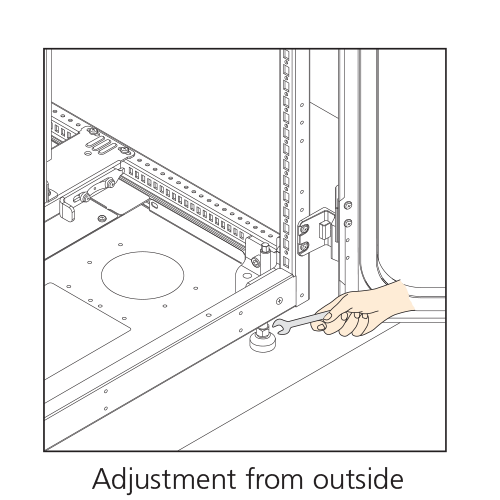

• Levelling feet is adjustable from outside and inside

the cabinet easily at each corner.

19 Inch Mounting Rails

• Compatible with EN 60297-3-100 ve EIA-310D

• 4 pieces of mounting rails in all configurations

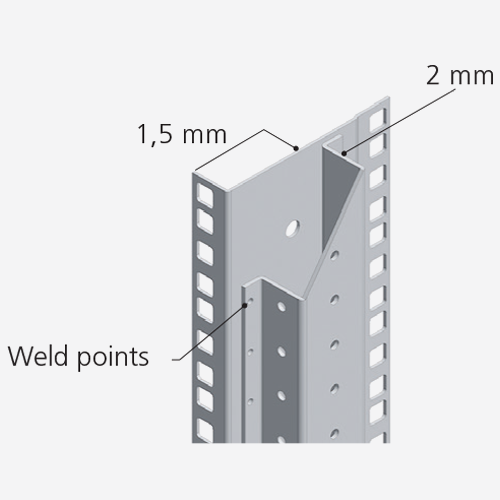

• Dual welded design with 2 mm +1,5 mm steel rails

• Square mounting holes for M6 cage nuts

• 1500 kg load capacity with four rails

• Additional 12U Zero-U mounting area option in 800 mm wide cabinets

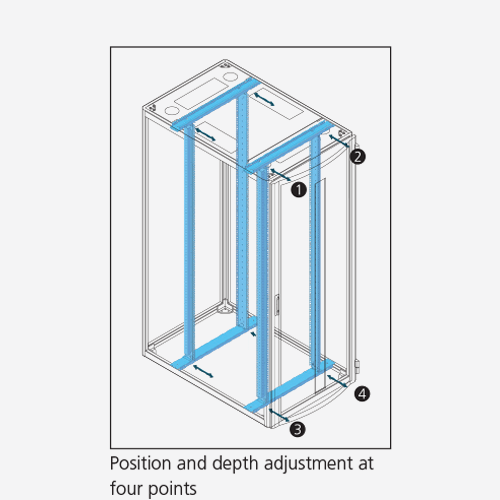

• Design with top and bottom support rails in width axis for fixing mounting rails

eliminate fixing at mid-height to the frame. More space is provided for cabling

and air flow management accessories.

• Mounting rails are in same colour with the cabinet.

• Threaded bolts and cage nuts used for device mounting and rail fixing ensure low

resistant grounding.

Castor

• Robust construction - plate type castor fixed on steel plate

• Steel ball bearing

• Standard type four-wheel set is designed to transport

empty racks to initial place of use - each can rotate 360°

degrees

• The heavy-duty caster set allows safe and comfortable

movement of fully equipped racks loaded up to 1500 kg.

Only front two of four wheels are capable of 360° degrees

rotating.

• Cabinets equipped with heavy-duty castor set are UL 1678

certified for dynamic loading at 1500 kg.

Front and Rear Doors

• More airflow achived with 85% perforation

• Thanks to the 180° opening of the doors, the

aisle passage can be left free.

• Rear split door wings can open 180° over to

adjacent cabinets door when bayed side by side.

• Opening direction of full-width doors can be

changed on site whenever needed.

kolay-takilip-cikarilabilen-kapi-tasarimi

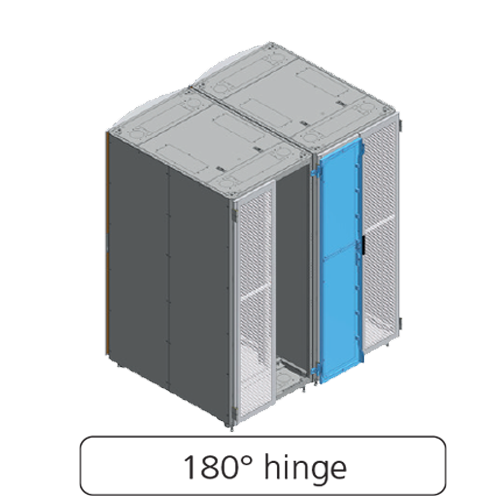

Removable / Attachable Door Desing

• After the doors are opened 20°, they can be easily removed without the need for tools and then installed in the same way. The grounding cable with socket provides convenience.

• Any part that might be lost while the door is being removed, such as hinge pin, is not present.

• Attaching removing the door is only possible after unlocking. No security vulnerability occurs.

• Door opening direction can be changed on site.

Locking Options

• All lock options provide single-point locking

as standard and four-point locking as option.

• Combination lock or unique pass key option

• Electronic lock with keypad

• Electronic lock with card reader

• Electronic lock with finger print

• Biometric access control - iris

• Biometric access control - palm vein

Dedicated Cable Routing On Doors

• Necessary cable route for electronic locking system

cabling inside the door is predefined.

• Cable channels for temperature and airflow sensors

are placed at top, mid- and lower height on the door

Bottom Cover

Thanks to its segmented design, bottom cover

A-May not be used at all to provide access directlyunder the floor

B-Can be used at front or rear side for efficientairflow management

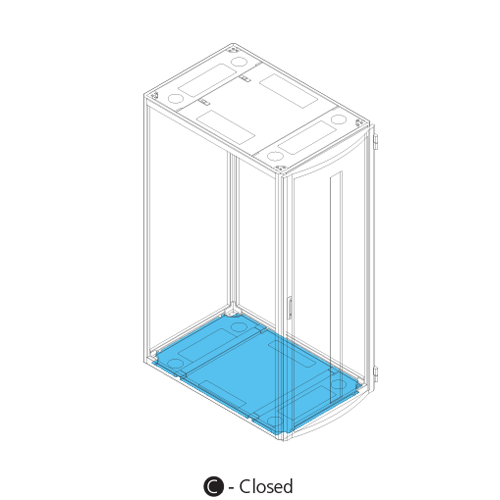

C-Can be used to completely close the bottomplane of the cabinet to prevent dust ingress orto provide full airflow control.

• Thanks to their segmented structure and theirdesign that they are positioned completely belowthe installation plane, bottom cover parts can beremoved or fixed later at site provided the cabinet isempty.

• Bottom covers enable entry of data and powercables at sides, front or rear of the cabinet’s bottom.

• There are various knockouts for cable entries wherecable entry accessories can be placed.

Top Covers

• There are openings on the top covers that allow for the use of various cable passage accessories.

• Top covers design provides possibility for mounting airflow management solutions that can be fixed to the upper parts of the cabinets.

• Various top-of-cabinet cable management accessories can be selected, which are compatible with other features of the top covers.

• The middle part of the top cover can be opened or removed and can be

Side Panels

• Vertically split side panels can be selected as either fixed types that are secured with

screws or center-hinged types with key locks. Head-of-row types provide speed and

ease of access to network cabinets at the end of aisles. Additionally, the fixed types

have pass-through versions with transition openings for neighboring cabinets. Cable

passage accessories are used in these transition openings.

• Cabinets can be joined together while the side panels are attached. The presence

and type of side panels do not affect the process of joining the cabinets side by side.

• Side panels are designed and manufactured to be self-grounding during installation.

Server Cabinet Features

Compatible with EN 60297-3-100 and EIA-310D for 19 inch equipment mounting
Grounding and protection circuit comply with EN 60950
1500 kg static load capacity in compliance with EN 61587-1 and UL 2416
Seismic resistance; tested and certified by internationally accredited laboratories for complience to EN 61587-2
1500 kg dynamic load capacity with optional heavy-duty casters UL 2413 and UL 1678
Mounting rails, top panel, side panels and doors are electrically bonded to the cabinet frame. Additional grounding terminal is fixed on the frame for common bonding network connection.
Perforated doors have 85% relative open area - calculated in compliance with DIN 24041 Perforated Plates Standard
Unless otherwise stated standard packaging is used.

Network Cabinet Features

Steel frame and two sets of dual vertical mounting rails that can be adjusted independently in depth axis - both front and rear mounting rails have unit indication markings.
Full metal leveling feet set with a high corrosion resistance coating 1500 kg load carrying capacity.
Standard type castor set is designed for transfering empty cabinets to initial place of use - each can rotate 360 degrees
Grounding terminal bracket for connecting to common bonding network
Top cover - with one (1) pc. brushed cable entry accessory
Side panels Standard; set of two (2) fixed panels
Option 1; set of two (2) lockable and hinged panels.
Option 2; set of two (2) transition type side panels
four (4) pieces cable entry knockouts on each
panel and four (4) pieces brushed cable
entry accessories
Front and rear doors - with standard swinghandle lock Standard; full-width curved perforated front door and split perforated rear door
Option; full-width curved perforated front and rear
doors
• Bottom cover Standard; none
Option 1; full-covered with knockouts
Option 2; semi-covered for air flow management

Server Cabinet

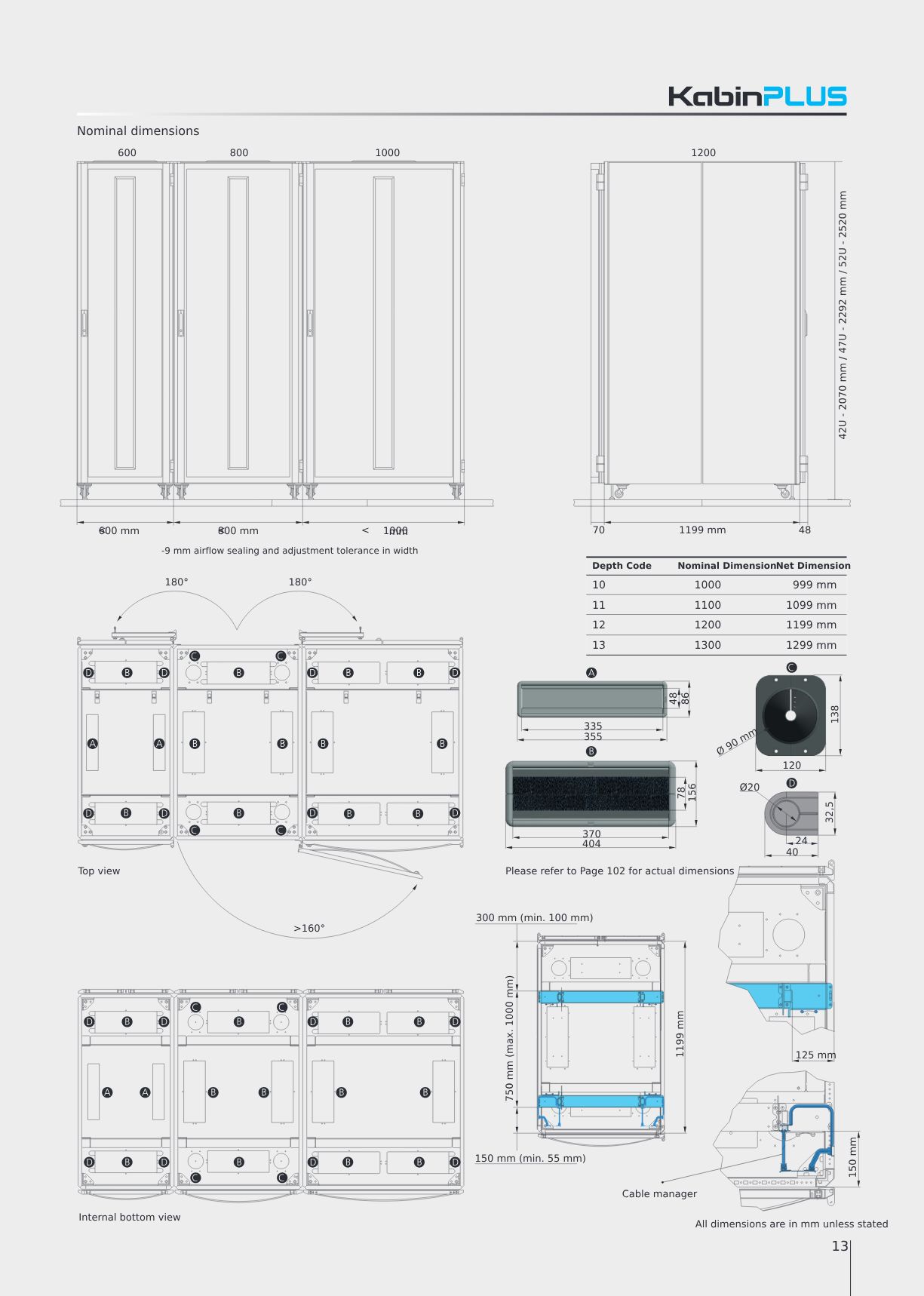

Width	Height	Depth
600 mm	42U - 2000 mm	1000 mm
	47U - 2200 mm	1100 mm
	*52U - 2400 mm	1200 mm
		*1300 mm

Network Cabinet

Width	Height	Depth
800 mm	42U - 2000 mm	1000 mm
1000 mm	47U - 2200 mm	1100 mm
	*52U - 2400 mm	1200 mm
		*1300 mm
