KR Series - Standing Type Datacom Rack Cabinets

Built on the successful KabinPLUS platform, KR Series cabinets are designed to provide features that may be needed in data - communication infrastructures.

standart-ozellikler-1standart-ozellikler-2

Standard Features

• Two pairs of 19-inch mounting rails, which can be positioned with adjustable depth at the back and front, are painted black and have white marks indicating U height.
• Cabinets can be used solo or bayed together with baying brackets.
• All doors, covers and internal parts are electrically bonded with the framework. The door grounding conductor with socket provides convinience when the door is to be detached. The grounding terminal positioned on the framework is the connection point to the common grounding network.
• Full metal levelling feet help adjusting the level on uneven surfaces.

frenli-tekerlekler-1standart-tekerlekler-1

Castors

• Robust design with double wheels and steel ball bearings
• Fixed directly to the frame with M12 bolts

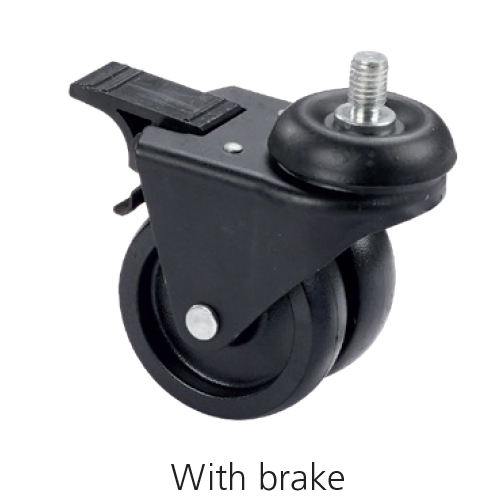

• Each of four castors has the ability to rotate 360 degrees. Two of them at front have brakes.

on-ve-arka-kapilar

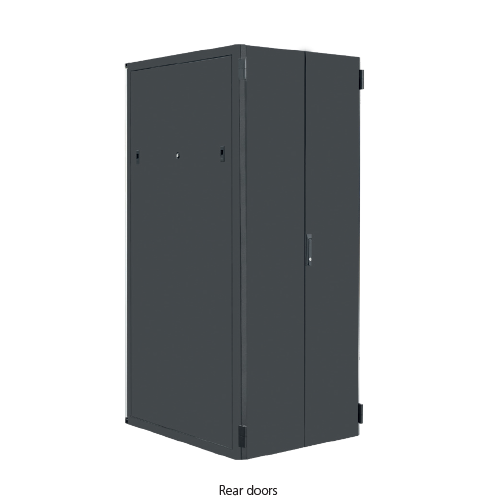

Front and Rear Doors

• Various door options available
 - Glazed, solid or perforated metal
 - Full-width or split
• Standard door configuration
 - Split glazed front door
 - Split solid metal rear door
• Thanks to the hinges that can be opened 180 degrees on all door types, accessing inside can be done without removing the doors which may be necessary during device installation or in case of major operational change inside the cabinet.
• Split, overlapping doors have one lock at mid height for convenient opening and closing. Integrated locking mechanism fastens both doors to the frame at top and bottom when the door is locked.

kolay-kablolama

Flexible Cabling

• Top covers have pre-lasercut and breakable cable entry openings at the front, back and sides for easy cable management.
• Side top entry openings allow cables to be easily routed between 19 inch zone and side panel.
• Cable entry accessories with integrated brush strips can be used at breaken or knocked-out entry openings for physical cable protection and dust sealing.

uyarlanabilir-havalandirma

Adaptable Ventilation

• Knockouts at the center of top panels are to be used to install fan modules when needed.
• Depending on the depth of the cabinet up to 3 fan modules can be installed.
• Fan modules can be fixed or removed from outside and each is equipped with ON/OFF switch, thermostat and 1, 2 or 3 fans depending on selection.

yan-paneller-2yan-paneller-2

Side Panels

• Full-height side panels can easily be positioned with quick release latches located at both sides and locked with key at the center.
• Having side covers installed does not prevent multiple cabinets from being bayed side by side.
• Grounding of side panel is ensured automatically when locked in place. Dedicated grounding conductor is eliminated.

Server Kabinet 1Server Kabinet 2Server Kabinet 3

Server Cabinet Features

  • Compatible with EN 60297-3-100 and EIA-310D for 19 inch equipment mounting.
  • Grounding and protection circuit comply with EN 60950.
  • Mounting rails, top panel, side panels and doors are electrically bonded to the cabinet framework. Additional grounding terminal is fixed on the frame for common bonding network connection.
  • Doors with 225 degree opening angle
  • Standard colour is RAL 9005 black.
  • Split, overlapping doors have one lock handle at mid-height for convenient opening and closing. Integrated locking mechanism fastens both doors to the framework at top and bottom when the door is locked.
  • Unless otherwise stated standard packaging is used.

Network Cabinet Features

  • Steel framework and two sets of dual vertical mounting rails that can be adjusted independently in depth axis. Both front and rear mounting rails have unit indication markings
  • Full metal leveling feet set with a high corrosion resistant coating and 1500 kg load carrying capacity
  • Grounding terminal bracket for connecting to common bonding network
  • The top cover is delivered with one brushed plastic cable entry accessory.
  • Side panels are removable and can be key-locked when in place.
    Keys have same combination as front and rear doors.
  • Front and rear doors
    Standard; - Split glazed front door
                    - Split solid metal rear door
    Opsiyon; - Full-width, single opening perforated metal front door
                   - Split solid metal rear door
  • Bottom cover
    Standard; open / none
    Option; completely closed
  • Castors
    Standard; none
    Option; four castors with 360°rotation

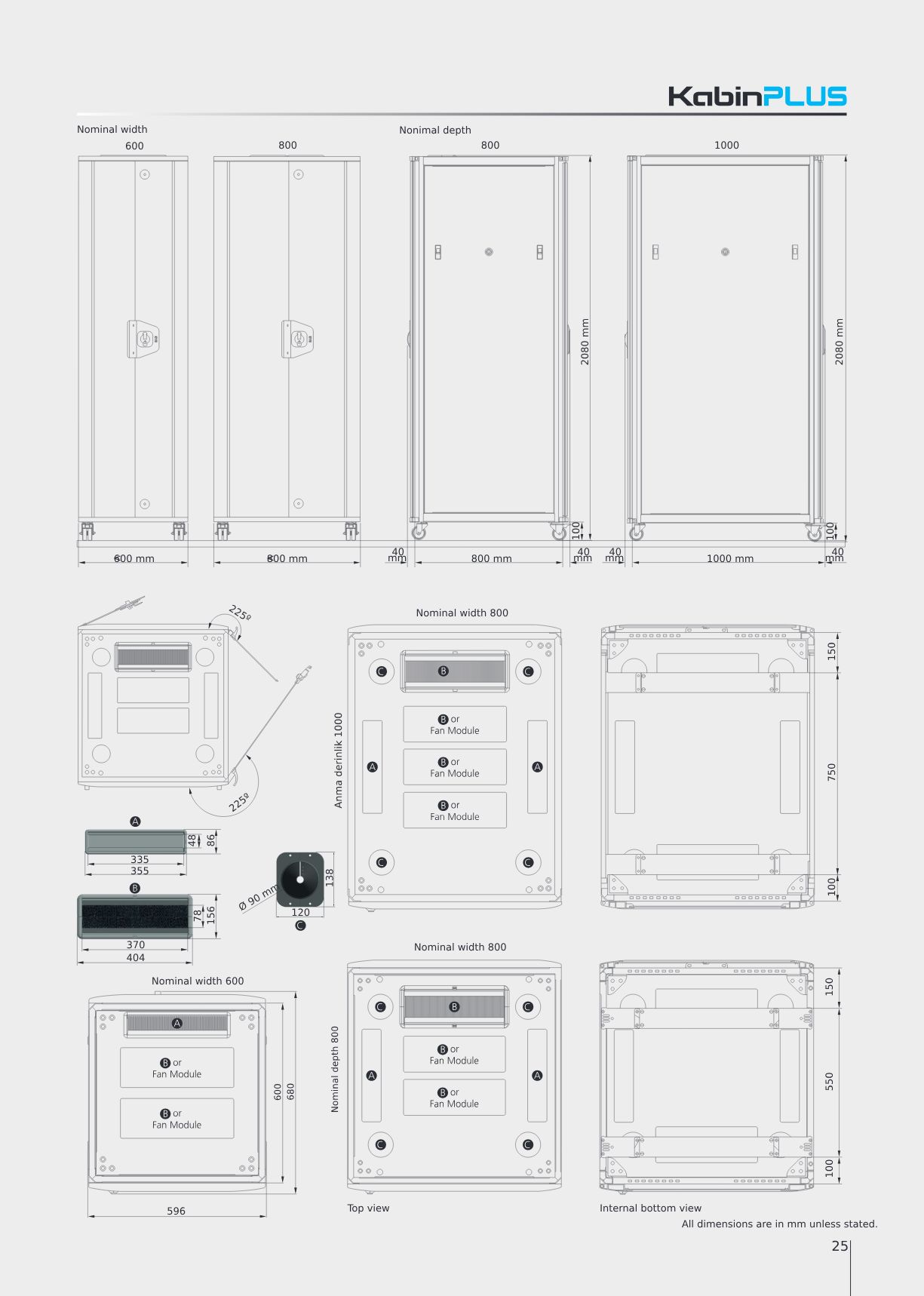

Server Cabinet

Height

Width

Depth

26U - 1400 mm

600 mm

600 mm

36U - 1800 mm

800 mm

42U - 2000 mm

1000 mm

Network Cabinet

Height

Width

Depth

26U - 1400 mm

800 mm

800 mm

36U - 1800 mm

1000 mm

42U - 2000 mm

kr-serisi-standart-olculer-1
