EdgeBLOK MOD ​​- All In One Container

They are compact solutions obtained by installing solutions such as power, cooling and security in a mobile structure designed in different sizes, like a traditional system room.

yangin-algilama-ve-sondurme-sistemi

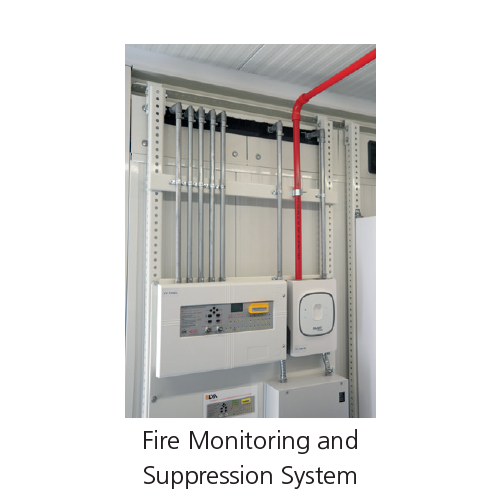

Fire Monitoring and Suppression System

enerji-dagitim-panolari

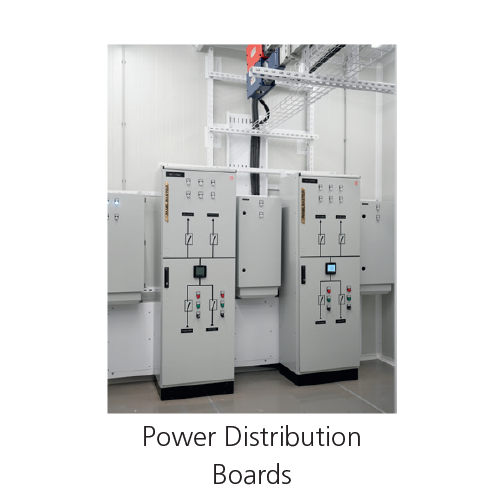

Power Distribution Boards

guvenlik-ve-cevre-izleme-kabinetleri

Security and Environmental Monitoring Cabinet

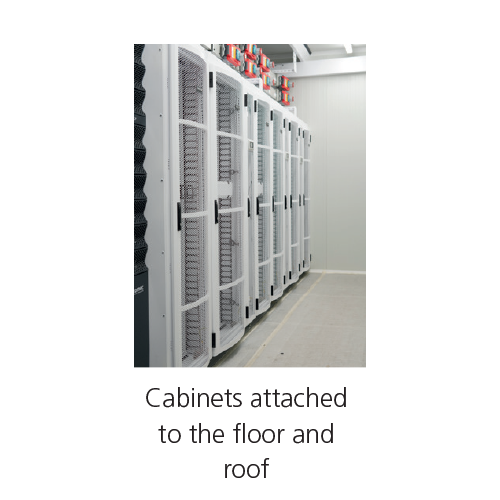

tavana-ve-zemine-sabitlenmis-kabinetler

Cabinets attached to the floor and roof

yuklu-halde-tasinmaya-uygun-guclu-celik-konstruksiyon

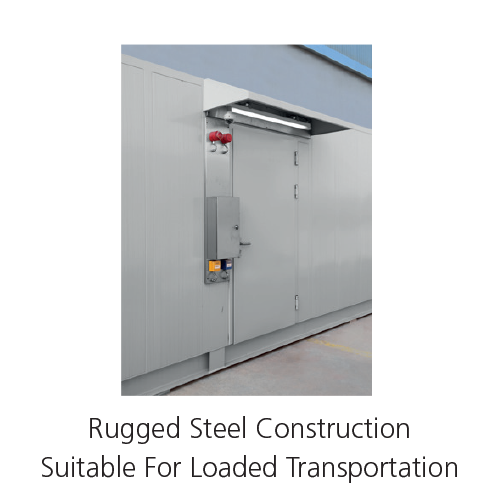

Rugged Steel Construction Suitable For Loaded Transportation

sicak-koridor-kapama-sistemi

Hot Aisle Containment Busbar Power Distribution

busbar-guc-dagitimi

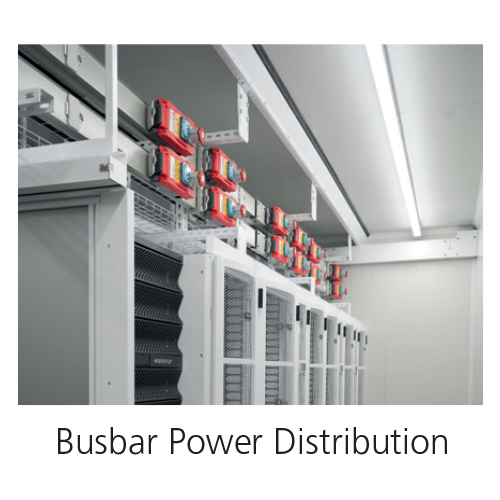

Busbar Power Distribution

ambalajlanmis-konteyner

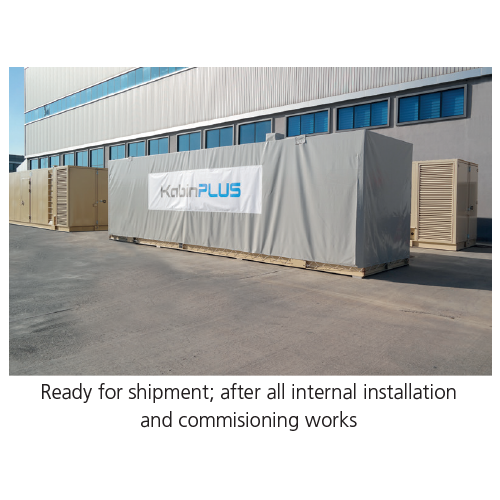

Ready for shipment; after all internal installation and commisioning works

ALL-IN-ONE Container

100kW IT Load

20kW IT Load

ISO 40”HC- High Cube

NON-ISO

STRUCTURAL
FEATURES

External Dimensions (mm)

Length

12192

14000

Width

2438

3600

Height

2896

3532

Number of Cabinets

4 (2 Network + 2 Server)

4 (2 Network + 2 Server)

10 (2 Network + 8 Server)

Cabinet Height / Depth

42U - 47U / 1200 mm

Data 2

Cooling Topology

Cooling System

Data 2

Fan-Wall / Hot Aisle Contianment

Data 2

Cooling

N

20kW

55kW + 55kW

N+1

20kW + 20kW

55kW + 55kW + 55kW

per Cabinet

5kW

10kW

ELECTRICAL
FEATURES

Power Distribution

Main Distribution Boards, A and B

400V AC, 3 Phase, 50 Hz - 230V

400V AC, 3 Phase, 50 Hz - 230V, Busbar

Emergency Backup - UPS

Capacity

25kW

125kW

Backup Time

30 minutes

30 minutes

Redundancy

N+1

N+1

FIRE SECURITY

Fire Security

Suppression

Novec 1230

Detection

Smoke and Air Quality Sensors / VESDA - Optional

Fire Rating

Duration
120 minutes

SECURITY

Access Control System

White Space Door

Biometrical- Palm Vein, Cabinets and Technical Room Doors (Optional)

Env. Monitoring System

White Spae

CCTV and Temperature/Humidity, Smoke and Water Leakage Sensors

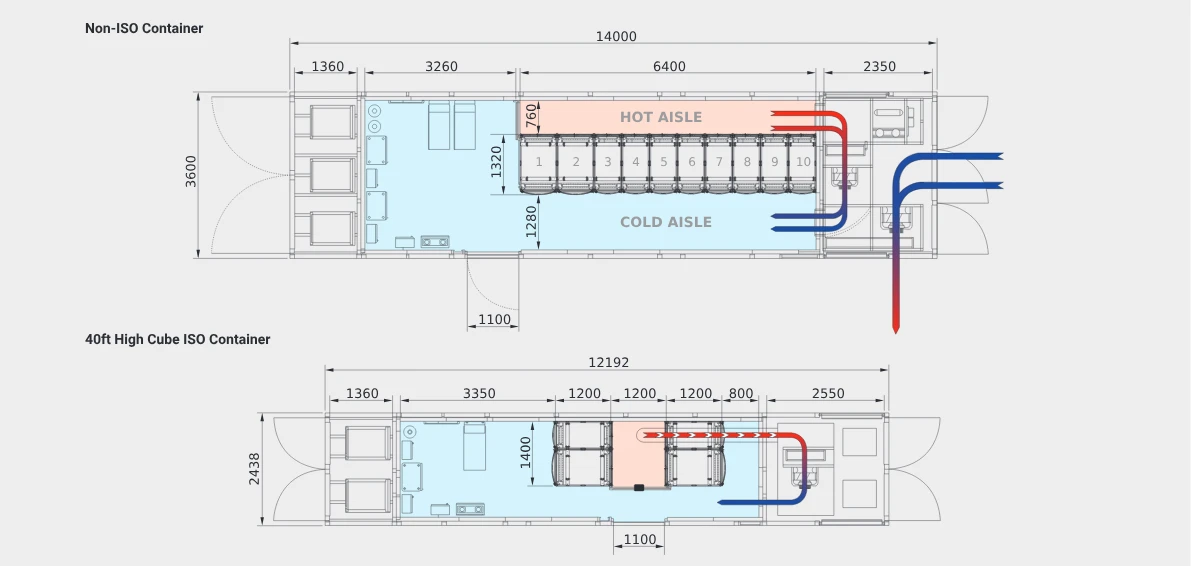

edgemod-teknik-ozellikler-gorsel
