O and M Series

 E-Kabin M Series wall-mounted enclosures are designed as general purpose electrical equipment enclosures for indoor applications. They have monoblock body structure and provide IP66 protection degree. The body and door are made of pre-galvanized sheet steel and painted with epoxy polyester powder coating.

kapi-ici-profilleri

 Support rails

 Support rails increase the strength of the door and allow attachment of equipment such as cables and cable trays.

poliuretan-conta

 Polyurethane sealing gasket

Foam-in place gasket applied to the door does not lose its elasticity in time and provides protection against dust and water.

kullanisli-kilit-sistemi

 Useful lock system

The key, which is designed to be attached to the lock slot if needed, can also be used as a lock handle

130-derece-acilabilir-kapi

130° standard door opening

The door can be opened 130° wide with the standard hinge set, thus full access is provided during assembly.

180-derece-acilabilir-kapi-mentese-akseusari

 180° Hinge accessory – optional

The door can be opened 180° with the optional hinge set.

degistirilebilir-kapi-acilma-yonu

 Changeable door opening direction

 The door opening direction can be changed if it is needed.

kullanisli-braket

 Useful bracket

With the bracket set, the enclosure can be fixed to the wall easily and quickly. The bracket kit is included in the standard supply content.

 Type of Mounting:

Wall-Mounted

Modularity:

Monoblock

Application:

Indoor

Protection Class:

IP 66

Paint:

Epoxy-Polyester Powder Paint

Colour:

Standard RAL 7035 (Grey Colour)

Environmental Class :

According to EN 60721 - 3 - 3 IE32

Standards:

IEC 61439-1, IEC 62208, IEC 60529, IEC 62262

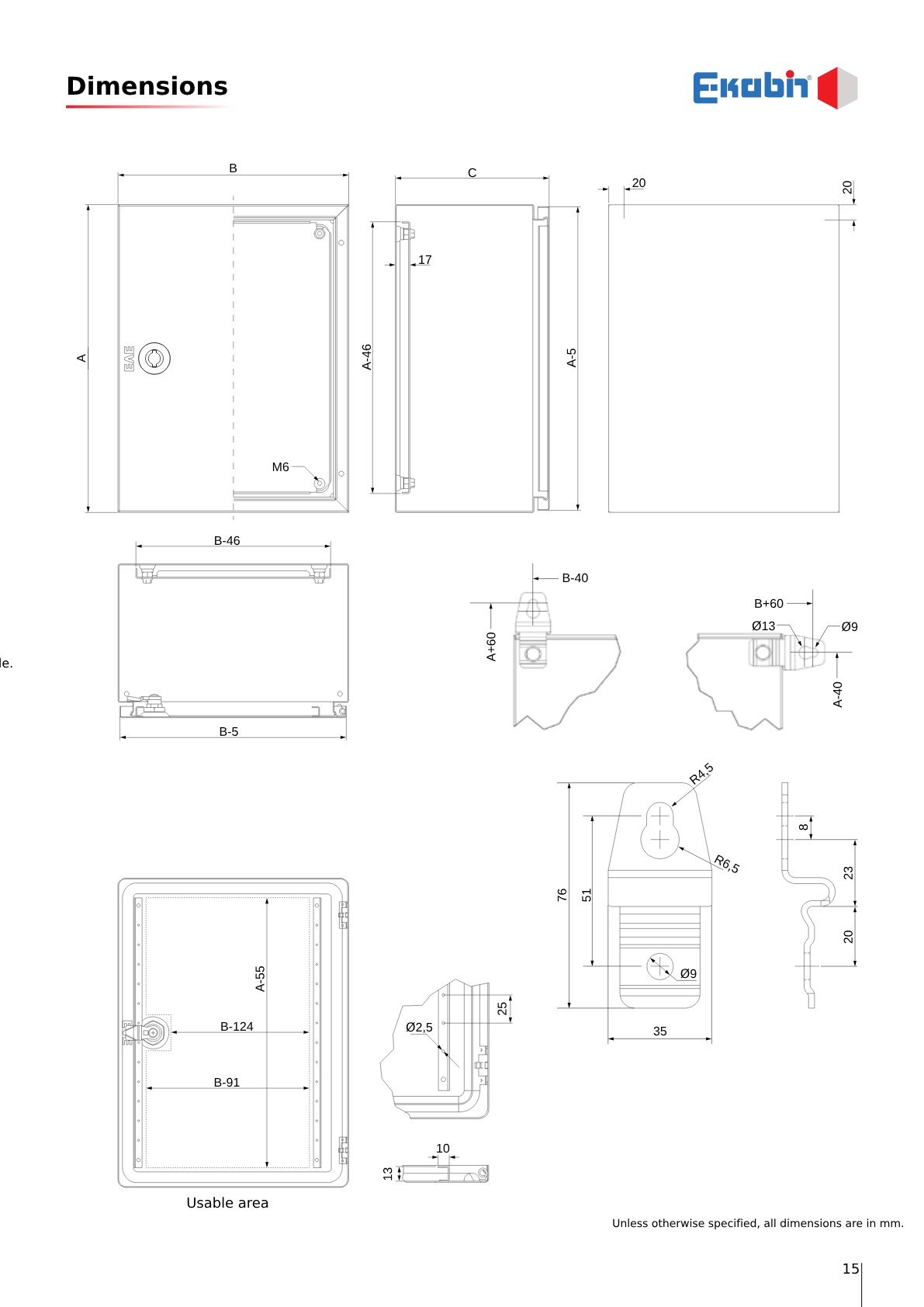

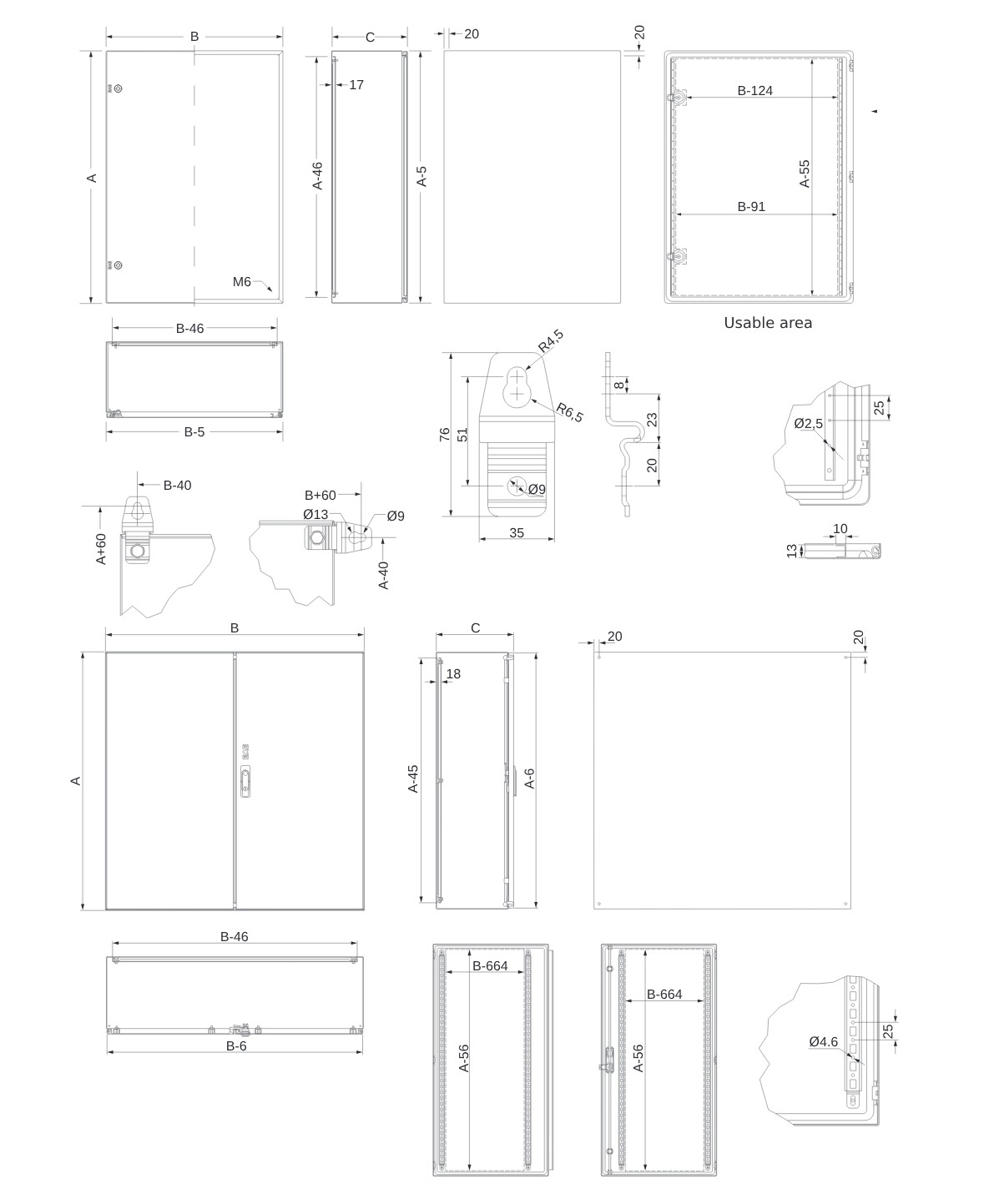

Enclosure - With Mounting Plate

Enclosure Rated
Height (A)

Enclosure Rated
Width (B)

Enclosure Rated
Depth (C)

Order  Codes

Lock  Quantity

Hinge  Quantity

300

200

300

150

200

EO 30 20 15

EO 30 30 20

1

2

400

300

300
400

150

200
200

EO 40 30 15

EO 40 30 20
EO 40 40 20

1

1
1

2

2
2

500

350

350
400
500

150

200
200
200

EO 50 35 15

EO 50 35 20
EO 50 40 20
EO 50 50 20

1

1
1
1

2

2
2
2

600

400

400
400
500
600
600

150

200
300
300
200
250

EO 60 40 15

EO 60 40 20
EO 60 40 30
EO 60 50 30
EO 60 60 20
EO 60 60 25

1

1
1
1
1
1

2

2
2
2
2
2

700

500

500

200

300

EO 70 50 20

EO 70 50 30

2

2

3

3

800

600

600
600

200

250
300

EO 80 60 20

EO 80 60 25
EO 80 60 30

2

2
2

3

3
3

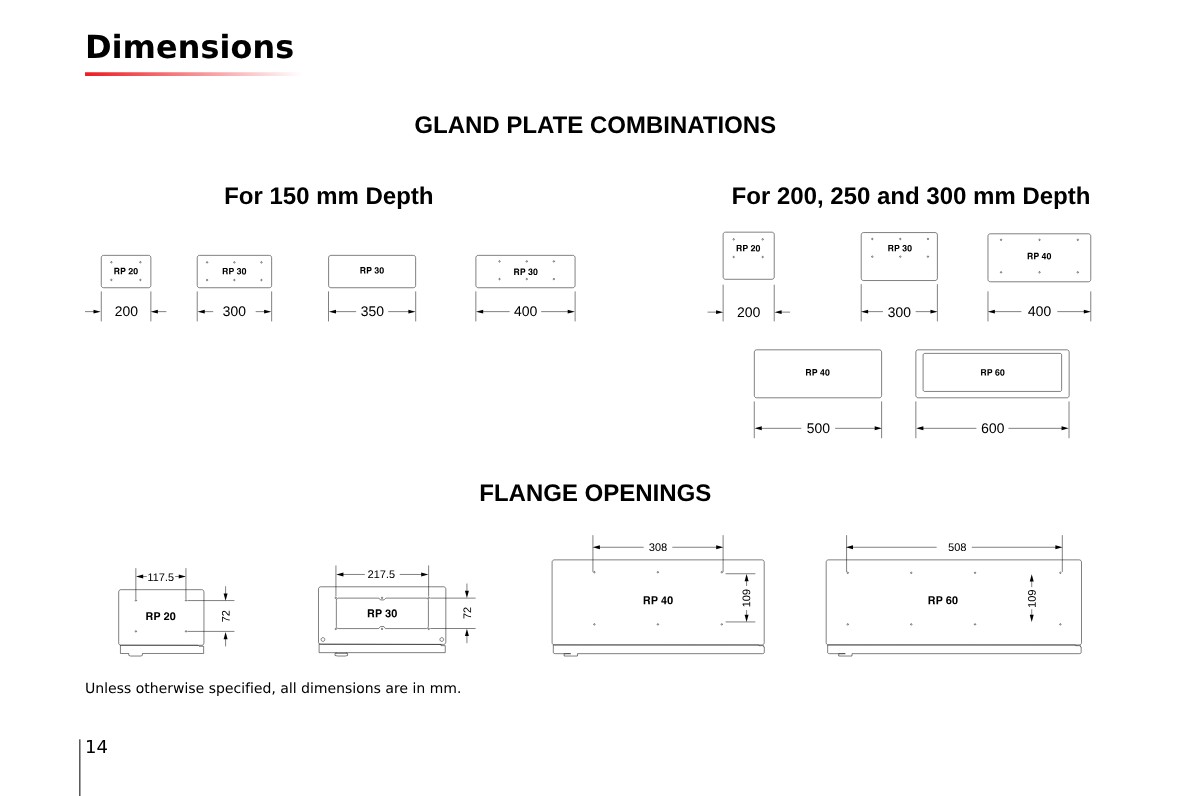

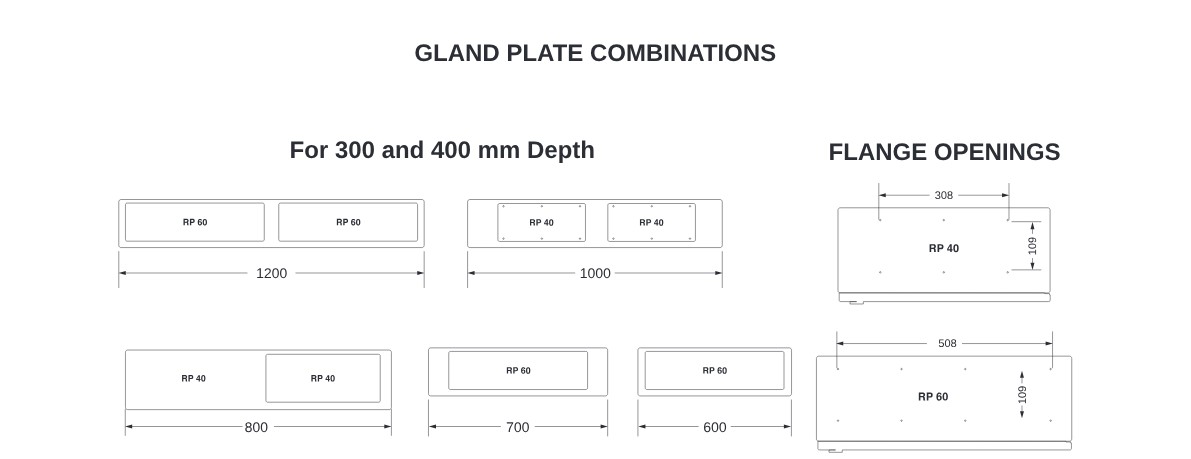

Note: Standard supply content: Mounting plate, bracket set, gland plate and earthing cable.

 Enclosure - With Mounting Plate, Plain Door

Enclosure Rated
Height (A)

Enclosure Rated
Width (B)

Enclosure Rated
Depth (C)

Order  Codes

Lock  Quantity

Hinge  Quantity

800

800

300

EM 80 80 30 D

2

3

900

600

300

EM 90 60 30 D

2

2
2

3

100

600

700
800
800

300

300
300
400

EM 100 60 30 D

EM 100 70 30 D
EM 100 80 30 D
EM 100 80 40 D

2

2
2
2

3

3
3
3

1200

600

800
800

300

300
400

EM 120 60 30 D

EM 120 80 30 D
EM 120 80 40 D

2

2
2

3

3
3

Note: Standard supply content: Mounting plate, bracket set, gland plate and earthing cable.

 Overlapping, Plain Door

Enclosure Rated
Height (A)

Enclosure Rated
Width (B)

Enclosure Rated
Depth (C)

Order  Codes

1000

1000

300

EM 100 100 30

1200

1000

1000
1200

300

400
300

EM 120 100 30

EM 120 100 40
EM 120 120 30

Note: Standard supply content: Mounting plate, bracket set, gland plate and earthing cable.

Note: You can get information from your Customer Representative for large quantities and different sizes.
