XM Series

E-Kabin XM Series wall mounted stainless electrical enclosures are designed as general purpose electrical equipment enclosures for indoor and outdoor applications. They have monoblock body structure and provide IP66 protection degree. Standard production does not include painting process. However, custom-made production, varnished or painted in the desired RAL code is possible. XM Series stainless-steel enclosures can be produced with AISI 304 or 316 grade raw material. Plastic lock is used in XM Series. Optionally, a lock made of 304 or 316 grade stainless-steel can also be used. All E-Kabin interior accessories are designed to be suitable for use in stainless-steel enclosures as well. While keeping standard product design unchanged, size modification, material thickness modification and cut-outs can be applied if requested.

poliuretan-conta

Polyurethane sealing gasket

Foam-in-place gasket, does not lose its elasticity over time and provides protection against dust and water.

asimetrik-cati

Asymmetrical canopy

It allows the use of bracket for wall mounting. Thanks to their reverse angle edge design above door threshold, rain water flows out of the enclosure.

opsiyonel-paslanmaz-kilit

Optional Stainless-steel lock

Instead of plastic lock, which has high chemical resistance, optionally AISI 316 grade stainless-steel lock can be used. Mounted AISI 316 grade lock do not exceed the door level.

ozel-olcu-imkani

Possibility of custom size production

Non-standard, custom size manufacturing is possible. * For details, you can get information from your Customer Representative.

paslanmaz-mentese

Stainless-steel hinge

Hinge body and pin made of Stainless-Steel material are used as standard.

siparise-ozel-delik-imkani

Possibility of custom-made cut-outs

Custom-made cut-out processing on the door andbody is applicable.

opsiyonel-paslanmaz-braket-aksesuari

Optional stainless-steel bracket

With bracket set enclosure mounting on the wall canbe done easily and quickly. Thanks to 90° swivel featureof the bracket, it’s positioning can be chosen eitherhorizontally or vertically. Bracket set is not included instandard supply content, it should be ordered separately.

temiz-yüzey deseni

Clean surface texture

In the production of stainless-steel enclosures, the welding process is applied in a way that does not leave any traces. Thus, clean and smooth surface appearance has been provided for welded surfaces.

Type of Mounting:

Wall-Mounted

Modularity:

Monoblock

Application:

Indoor, Outdoor

Protection Class:

IP 66

Environmental Class:

 According to EN 60721 - 3 - 3 IE37

Standards:

IEC 61439-1, IEC 62208, IEC 60529, IEC 62262

Material:

AISI 304 or 316 grade stainless-steel

Lock Set :

Plastic - standard,  Stainless-steel - optional

xm-serisi-siparis-kodlari-1

XM Series Stainless-Steel Monoblock Enclosures

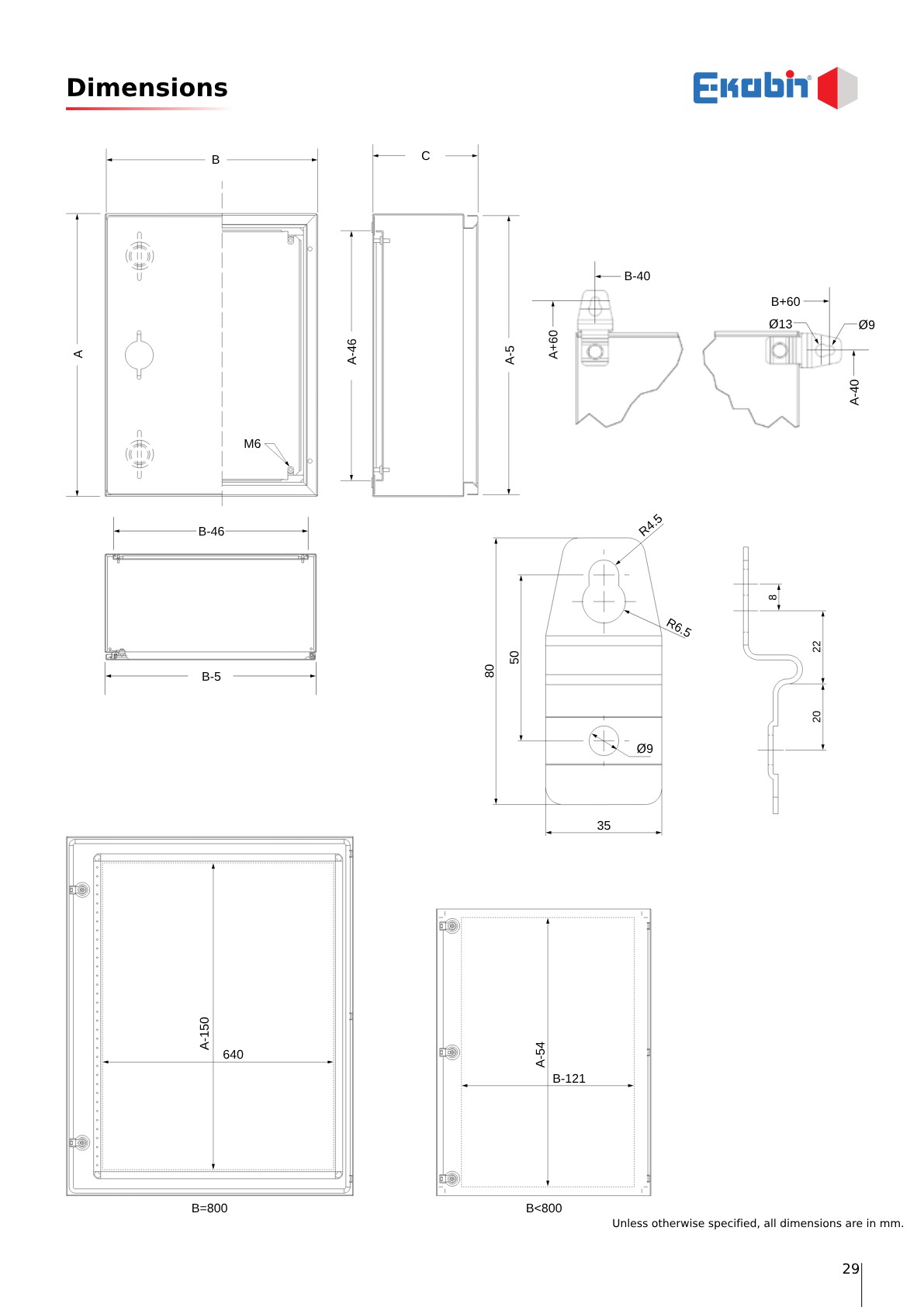

Enclosure Rated  Height (A)

Enclosure Rated Width (B)

Enclosure Rated Depth (C)

Order Codes (304)

Order Codes (316)

Lock  Quantity

Hinge  Quantity

400

300

600

200

200

XM 40 30 20 D 304

XM 40 60 20 D 304

XM 40 30 20 D 316
XM 40 60 20 D 316

1

1

2

2

500

400

200

XM 50 40 20 D 304

XM 50 40 20 D 316

1

2

600

400

600

200

300

XM 60 40 20 D 304

XM 60 60 30 D 304

XM 60 40 20 D 316
XM 60 60 30 D 316

1

1

2

2

700

500

500

200

300

XM 70 50 20 D 304

XM 70 50 30 D 304

XM 70 50 20 D 316
XM 70 50 30 D 316

1

1

2

2

800

600

600
800

200

300
200

XM 80 60 20 D 304

XM 80 60 30 D 304
XM 80 80 20 D 304

XM 80 60 20 D 316
XM 80 60 30 D 316
XM 80 80 20 D 316

2

2
2

3

3
3

1000

600

600
800

200

300
200

XM 100 60 20 D 304

XM 100 60 30 D 304
XM 100 80 20 D 304

XM 100 60 20 D 316
XM 100 60 30 D 316
XM 100 80 20 D 316

2

2
2

3

3
3

1200

600

300

XM 120 60 30 D 304

XM 120 60 30 D 316

2

3

Note: Standard lock is plastic. If stainless-steel lock is requested, please indicate it in your purchase order. Mounting plate is included in the standard supply content. Bracket set is not included in the standard supply content.
xm-serisi-siparis-kodlari-1

XM Series Stainless-Steel Monoblock Enclosures With Asymmetrical Canopy

Enclosure Rated Height (A)

Enclosure Rated Width (B)

Enclosure Rated Depth (C)

Order Codes (304)

Order Codes (316)

Lock Quantity

Hinge Quantity

400

300

600

200

200

XM 40 30 20 AC 304

XM 40 60 20 AC 304

XM 40 30 20 AC 316
XM 40 60 20 AC 316

1

1

2

2

500

400

200

XM 50 40 20 AC 304

XM 50 40 20 AC 316

1

2

600

400

600

200

300

XM 60 40 20 AC 304

XM 60 60 30 AC 304

XM 60 40 20 AC 316
XM 60 60 30 AC 316

1

1

2

2

700

500

500

200

300

XM 70 50 20 AC 304

XM 70 50 30 AC 304

XM 70 50 20 AC 316
XM 70 50 30 AC 316

1

1

2

2

800

600

600
800

200

300
200

XM 80 60 20 AC 304

XM 80 60 30 AC 304
XM 80 80 20 AC 304

XM 80 60 20 AC 316
XM 80 60 30 AC 316
XM 80 80 20 AC 316

2

2
2

3

3
3

1000

600

600
800

200

300
200

XM 100 60 20 AC 304

XM 100 60 30 AC 304
XM 100 80 20 AC 304

XM 100 60 20 AC 316
XM 100 60 30 AC 316
XM 100 80 20 AC 316

2

2
2

3

3
3

1200

600

300

XM 120 60 30 AC 304

XM 120 60 30 AC 316

2

3

Note: Standard lock is plastic. If stainless-steel lock is requested, please indicate it in your purchase order.Mounting plate is included in the standard supply content. Bracket set is not included in the standardsupply content.
