 HM Series

E-Kabin HM Series wall-mounted enclosures are designed as general purpose electrical equipment enclosures for outdoor applications. They have monoblock body structure and provide IP66 protection degree. All parts that come into contact with external enviroment are made of pre-galvanized sheet steel and coated first with primer paint then with electrostatic powder paint. Welded surfaces have smooth and clean appearance.

paslanmaz-mentese

Stainless-steel hinge

Hinge body and pin made of stainless-steel material are  used as standard.

poliuretan-conta

Polyurethane sealing gasket

Foam-in-place gasket, does not lose its elasticity over  time and provides protection against dust and water.

asimetrik-cati

Asymmetrical canopy

It allows the use of bracket for wall mounting. Thanks to their reverse angle edge design above door threshold, rain water flows out of the enclosure.

130-derece-acilabilir-kapi

Standard Door Opening 130°

The door can be opened 130° wide with the standard hinge set, thus full access is provided during assembly

paslanmaz-braket-aksesuari

Stainless-steel bracket accessory

Stainless Bracket Accessory provides additional protection against corrosion.

baza-aksesuari

Plinth

In applications where mounting on the floor is required, plinth set accessory can be used additionally.

Type of Mounting:

Wall-Mounted

Modularity:

Monoblock

Application:

Outdoor

Protection Class:

IP 66

Paint:

High corrosion resistant paint according to ISO 12944-2

Colour:

Standard RAL 7035 (Grey Colour)

Environmental Class:

According to EN 60721 - 3 - 3 IE37

Standards:

IEC 61439-1, IEC 62208, IEC 60529, IEC 62262

Enclosure Rated  Height (A)

Enclosure Rated  Width (B)

Enclosure Rated  Depth (C)

Order Codes

Lock  Quantity

Hinge  Quantity

700

500

300

HM 70 50 30

2

3

900

600

300

HM 90 60 30

2

3

1000

800

400

HM 100 80 40

2

3

1200

800

400

HM 120 80 40

2

3

Note: Asymmetrical canopy module and mounting plate are included in standard supply content.

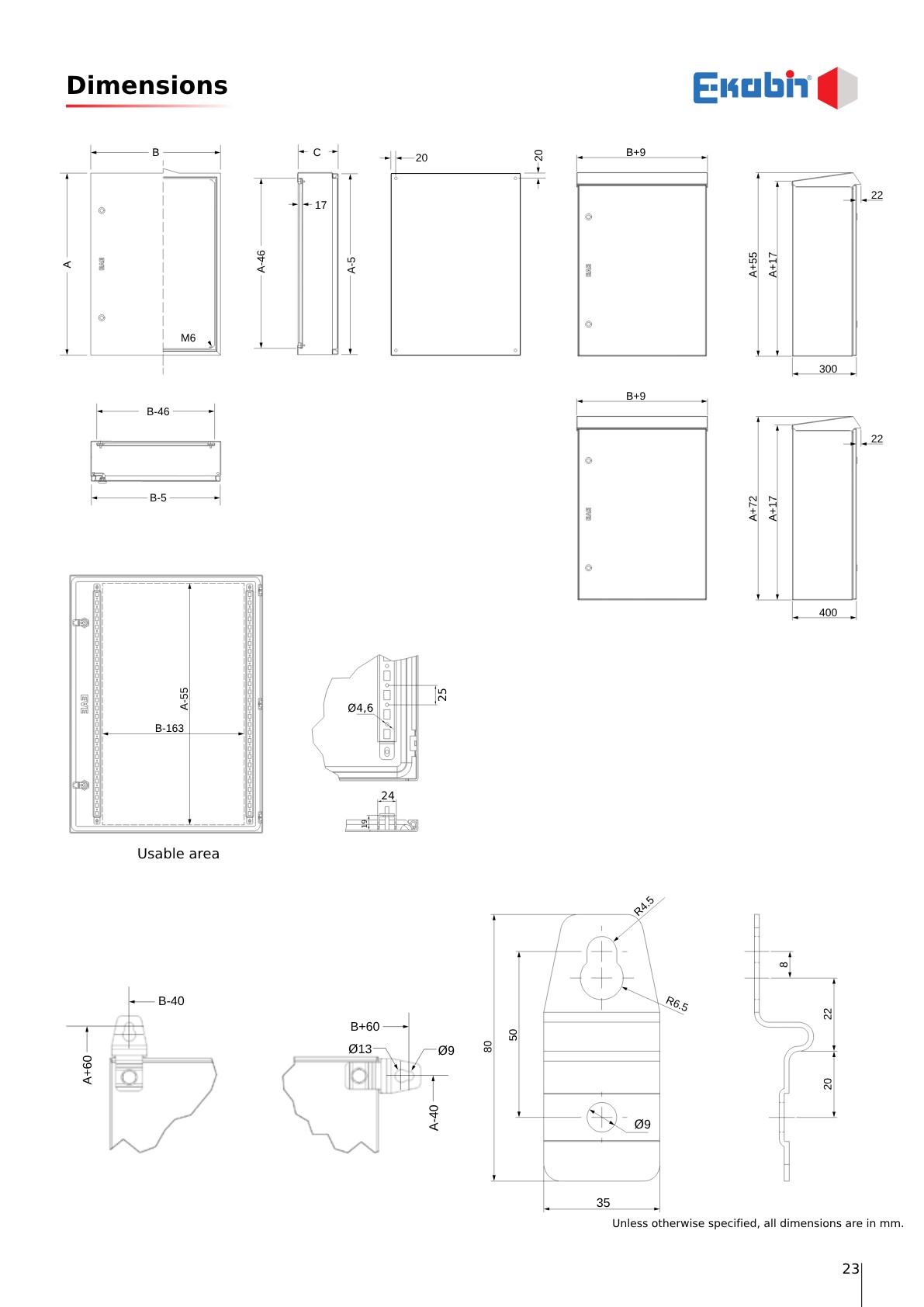

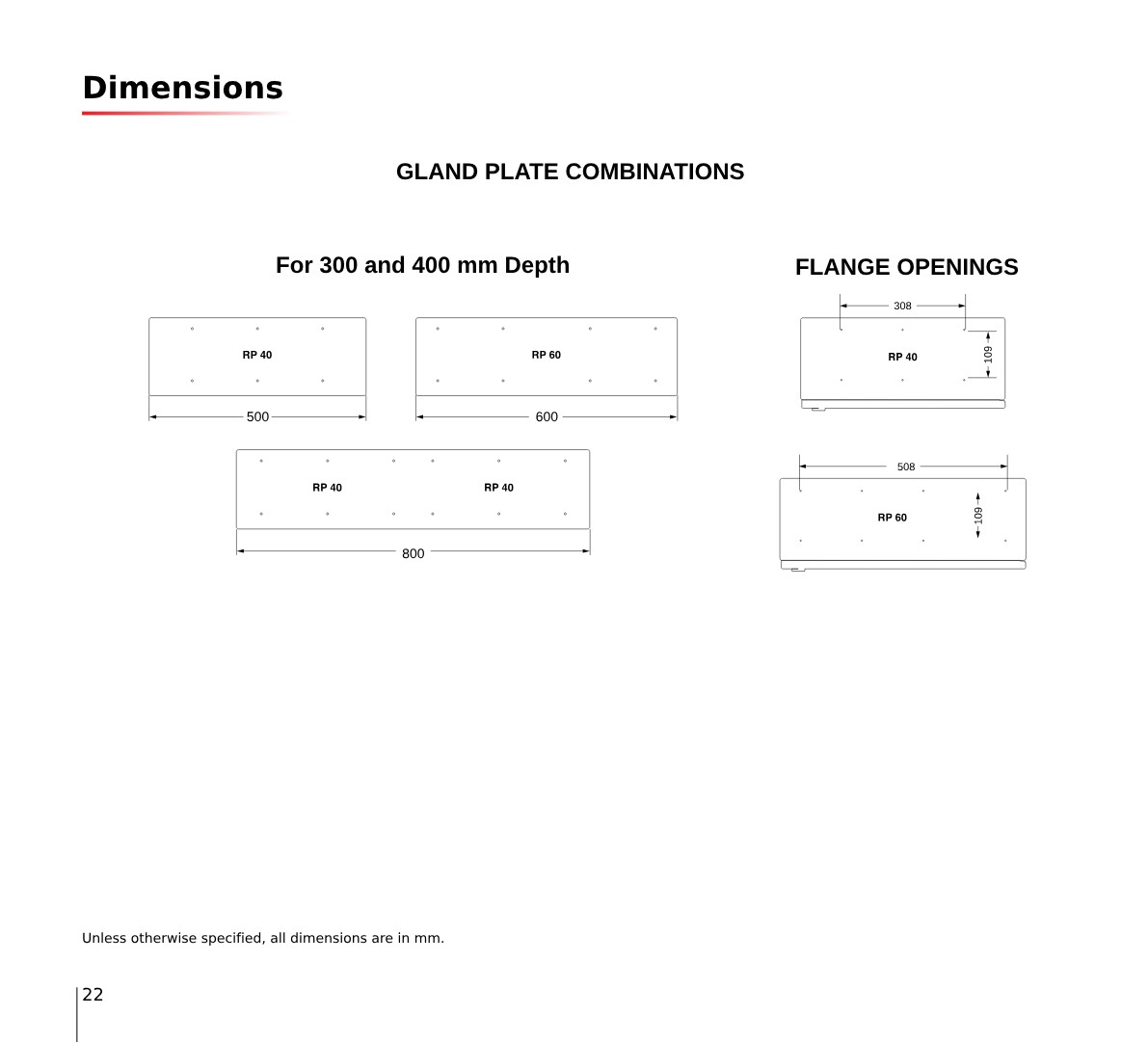

hm-serisi-standart-olculerhm-serisi-standart-olculer
