HF Series

E-Kabin HF Series floor-standing electrical enclosures are designed as general purpose electrical equipment enclosures for outdoor applications. They have monoblock body structure and provide IP66 protection degree. All parts that come into contact with external enviroment are made of pregalvanized sheet steel and coated first with primer paint then with electrostatic powder paint.

poliuretan-conta

Polyurethane sealing gasket

Foam-in-place gasket behind the door does not lose its elasticity in time and provides protection against dust and water

ortak-moduler-ic-aksesuarlar

Common interior accessories

Most of E-Kabin interior accessories such as mounting rails, mounting plates, cover plates etc. are designed to be suitable for use in all E-Kabin enclosures.

paslanmaz-kilit-aksesuari

Stainless-steel lock accessory

Standard swinghandle lock made of metal with high chemical resistance can be replaced with optionally selectable AISI 316 grade stainless-steel lock if required.

ust-aski-imkani

Lifting kit

The lifting kit is placed on the top of the canopy as standard.By the lifting kit, it is available to lift up and carry the fullyloaded enclosure safely and easily.

ust-uste-monte-edilebilir-baza

Stackable plinth

Thanks to its modular plinth structure, plints can be mounted on top of each other to increase the enclosure height.

cati-altinda-fan-imkani

Under canopy fan unit

”Under Canopy Fan Unit” is accesable from inside the enclosure for easy service and maintenance.

Type of Mounting:

: Floor-Standing

Modularity:

Monoblock

Application:

Outdoor

Protection Class:

IP 66

Paint:

According to ISO 12944-2 highcorrosion resistant paint

Colour:

Standard RAL 7035 (Grey Colour)

Environmental Class:

According to EN 60721 - 3 - 3 IE37

Standards:

IEC 61439-1, IEC 62208, IEC 60529, IEC 62262

   Order Codes

Enclosure Rated Height

Enclosure Rated Width (mm)

Enclosure Rated Depth (C)

Order Codes

16

600

800

05

05

HF 16 06 05

HF 16 08 05

20

600

800

05

05

HF 20 06 05

HF 20 08 05

Note: Mounting plate is not included in standard supply content, must be ordered seperately.

Note: Please consult your Customer Represantative for interior mounting accessories that can be selected for specific applications.

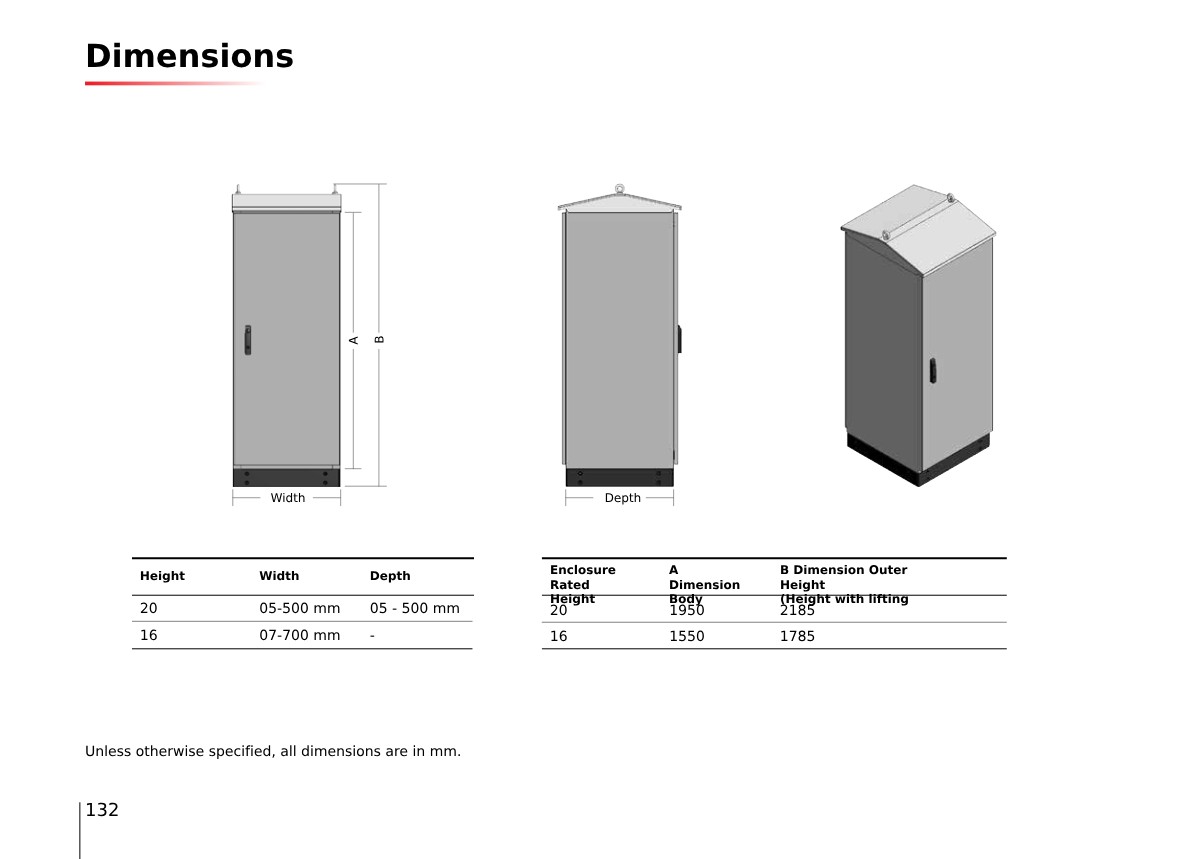

hf-serisi-standart-olculer
