XT Series ( Stainless-Steel)

E-Kabin XT Series terminal boxes are designed as general purpose electrical equipment enclosures for indoor and outdoor applications. They have monoblock body structure and provide IP66 protection degree. Standard production does not include painting process. However, custom-made production, varnished or painted in the desired RAL code is possible. XT series stainless-steel terminal boxes can be produced with AISI 304 or 316 grade raw materials as standard. While keeping standard product design unchanged, size modification, material thickness modification and cut-outs can be applied if requested.

ceyrek-cevrimli-gomulu-kilit

Quarter-turn lock

With quarter-turn locks, the door can be opened and closed easily.
temiz-yuzey-deseni

Clean surface pattern

In the production of stainless-steel enclosures, the welding process is applied in a way that does not leave any traces. Thus, clean and smooth surface appearance has been provided for welded surfaces.

genis-kutu-agiz-acikligi

Wide access opening

The design of the box opening prevents installation space losses and provides ease of access and installation inside the box

poliuretan-conta

Polyurethane sealing gasket

Foam-in place gasket applied to the door does not lose its elasticity in time and provides protection against dust and water.

kullanisli-montaj-plakasi

Practical mounting plate

Design of the mounting plate allows to evaluate the usable space inside the box with minimum loss

Possibility of custom-made size  production for high quantity orders

For high quantity orders, non-standard, custom-made size  manufacturing is possible.

* For details, you can get information from your  customer representative.

Possibility of custom-made cut-outs

Custom-made cut-out processing in the door and body is  applicable

paslanmaz-braket-aksesuari

Optional stainless-steel bracket

With bracket set enclosure mounting on the wall can be done easily and quickly. Thanks to 90° swivel feature of the bracket, it’s positioning can be chosen either horizontally or vertically. Bracket set is not included in standard supply content, it should be ordered separately.

Type of Mounting :

Wall-Mounted

Modularity :

Monoblock

Application :

Indoor

Protection Class :

IP66

Environmental Class :

According to EN 60721 - 3 - 3 IE33

Standards :

 IEC 62208, IEC 60529,  IEC 62262

Material :

AISI 304 or 316 grade
stainless-steel - standard

Board Rated Height (B)

Board Rated Width (A)

Board Rated Depth (C)

Order Codes (304)

Order Codes (304)

Order Codes (316)

200

200

120

XT 20 20-304 KK

XT 20 20-304 PK

XT 20 20-316 PK

200

300

120

XT 20 30-304 KK

XT 20 30-304 PK

XT 20 30-316 PK

200

400

120

XT 20 40-304 KK

XT 20 40-304 PK

XT 20 40-316 PK

300

300

120

XT 30 30-304 KK

XT 30 30-304 PK

XT 30 30-316 PK

300

400

120

XT 30 40-304 KK

XT 30 40-304 PK

XT 30 40-316 PK

400

400

120

XT 40 40-304 KK

XT 40 40-304 PK

XT 40 40-316 PK

KK - Chrome plated zamak lock          PK - AISI 316 grade stainless-steel lock
Note: The mounting plate is included in the order; bracket set is excluded

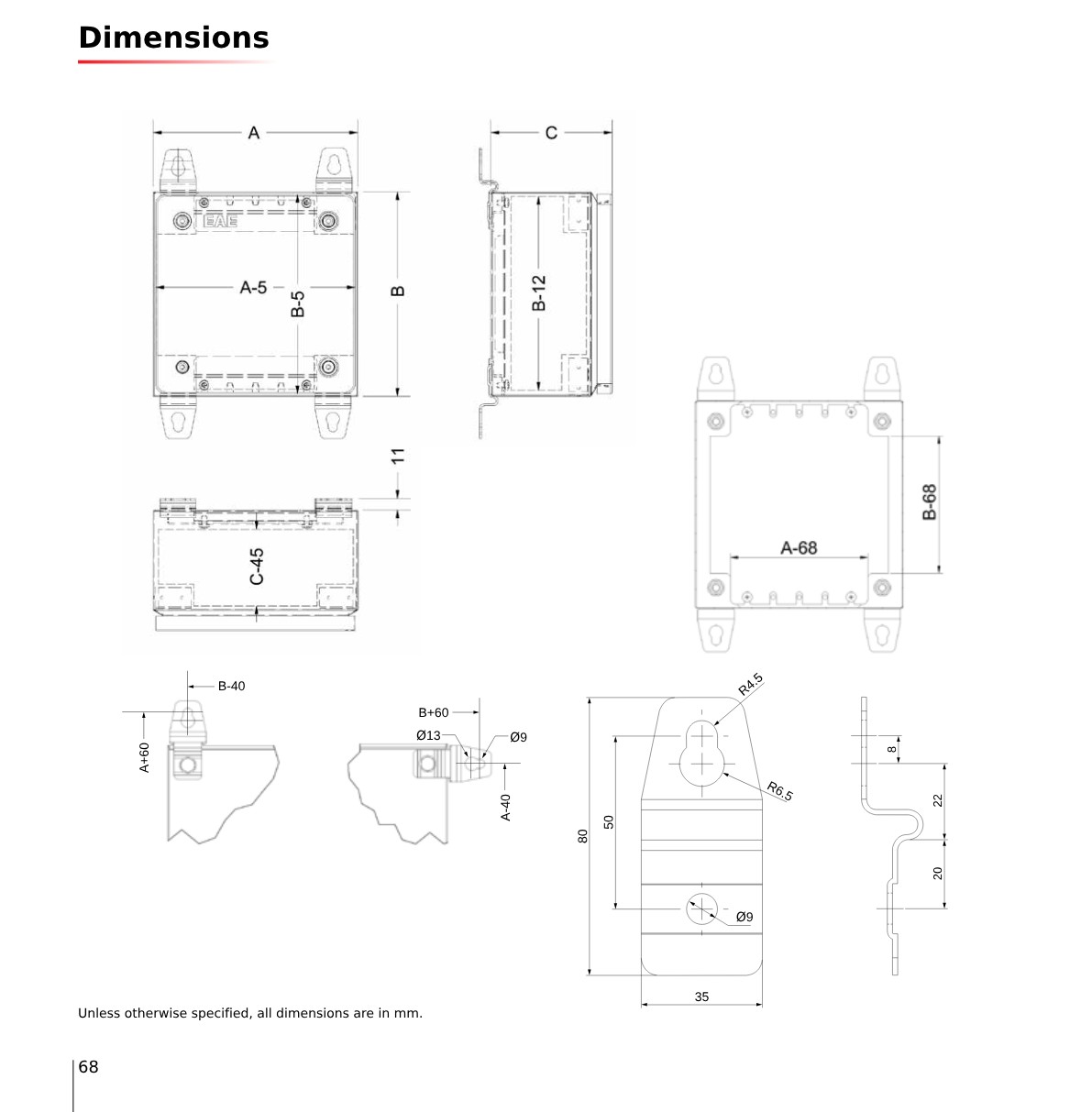

xt-serisi-standart-olculer
